5 x 7 Apex Shed (Single Door, No Windows)
20% OFF — The TakeoverEnds Sunday 11 October
In stock — FREE UK mainland delivery in 2–3 days

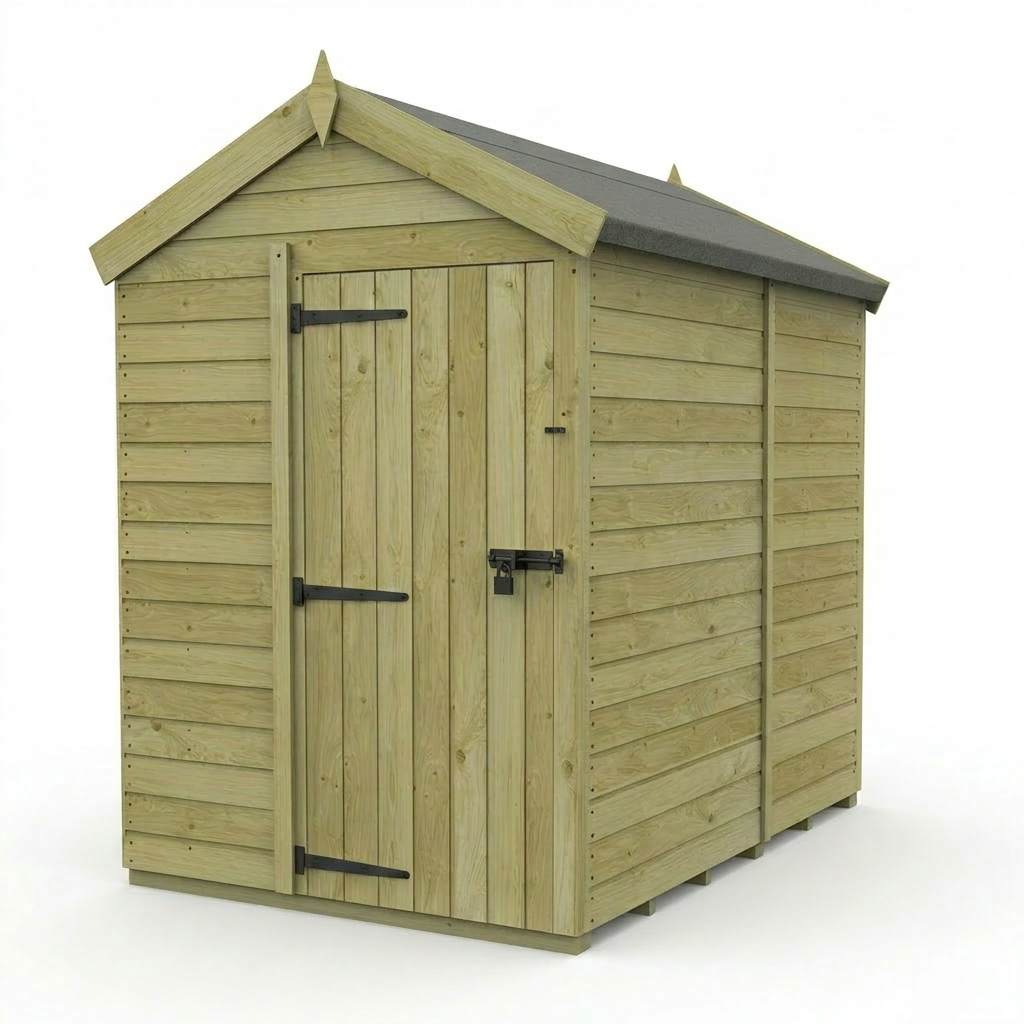

Shown as a true-to-spec render. See real Total Sheds buildings
Size
5x7 ft
Material
Timber
Timber
FSC certified
Good to know
tap to enlargeConfigure this building
Door
Windows
Specification
Finishing touches
Half price — £239 £119.50. The exact rubber sheet and adhesive we're charged for, delivered to your door — cut to size for your roof.
- 16mm tanalised shiplap
- Pressure-treated UC3
- Made in the West Midlands
The Takeover — 20% OFFEnds Sunday 11 October
Total price
£623.99£779
You're saving £156 in the Takeover
Pay your way at checkout — card, Apple Pay, Google Pay, PayPal or Klarna.
- Free UK mainland deliveryArrives in 2–3 working days — or choose a date at checkout
- 20-year anti-rot guaranteePressure-treated timber, guaranteed against rot
- Secure checkoutEncrypted payment — we never store your card details
Seen it cheaper? We'll match it
Prefer to see one first? View at our stockists or on a video callQuestions? Chat on WhatsAppNever treat a shed again
Go maintenance-free for £803.36 more
The composite 5x7 — same footprint, zero upkeep, from £1,427.35 (vs standard spec).
See the composite version →
Not sure? Feel the cladding first — free samplesNeed a different size?
The same model, doors and windows in another size.
About this building
Introducing the Total Sheds 5 X 7 APEX SHED (SINGLE DOOR, NO WINDOWS), your UK manufactured solution for secure storage in the garden or outdoor space. Crafted from premium FSC certified pressure-treated tanalised Swedish red-wood, this garden building provides a durable and reliable shelter for tools, lawnmowers, bikes, and equipment.
Full specification
+
Structure
Cladding- 16mm nominal Tanalised T&G shiplap
- Fascias & corners
- Tanalised timber capping and corner boards
Framework- 38×50mm pressure-treated timber
- Floor
- 24mm nominal (18mm finished) pressure-treated square-edge boards
- Roof boards
- 16mm nominal T&G
Roof & weatherproofing
Dimensions
- Footprint
- 5x7 ft
- Internal height (eaves)
- 1757mm
- Internal height (ridge)
- 2087mm
- Door opening (width)
- Single 29″ (737mm) · Double 42″ (1067mm)
Treatment & warranty
- Treatment
- Tanalith E vacuum pressure treatment
- Warranty
- 20-year anti-rot warranty
- Maintenance
- Optional colour treatment every 2–3 years
Fittings & delivery
- Hardware
- Galvanised T hinges, press lock & turn buttons
- Delivery
- FREE UK mainland — 2–3 working days
- Assembly
- DIY with easy guides provided on delivery, or professional installation
Sizes are nominal footprints in feet. External dimensions can differ slightly from the headline size because of cladding overhang and panel construction — the internal heights listed are the real usable measurements.
Nominal vs finished sizes — what's the difference?+
Timber is measured before machining — that "sawn" size is the nominal figure. Planing it smooth (and, on cladding, cutting the tongue-and-groove profile) removes a few millimetres, so a 16mm nominal board finishes at around 12mm, and a 24mm nominal floor board finishes at around 18mm.
Every timber manufacturer works this way — but most only quote the bigger nominal number. We publish both, so you can compare buildings on the wood you actually get, not the wood it started as.

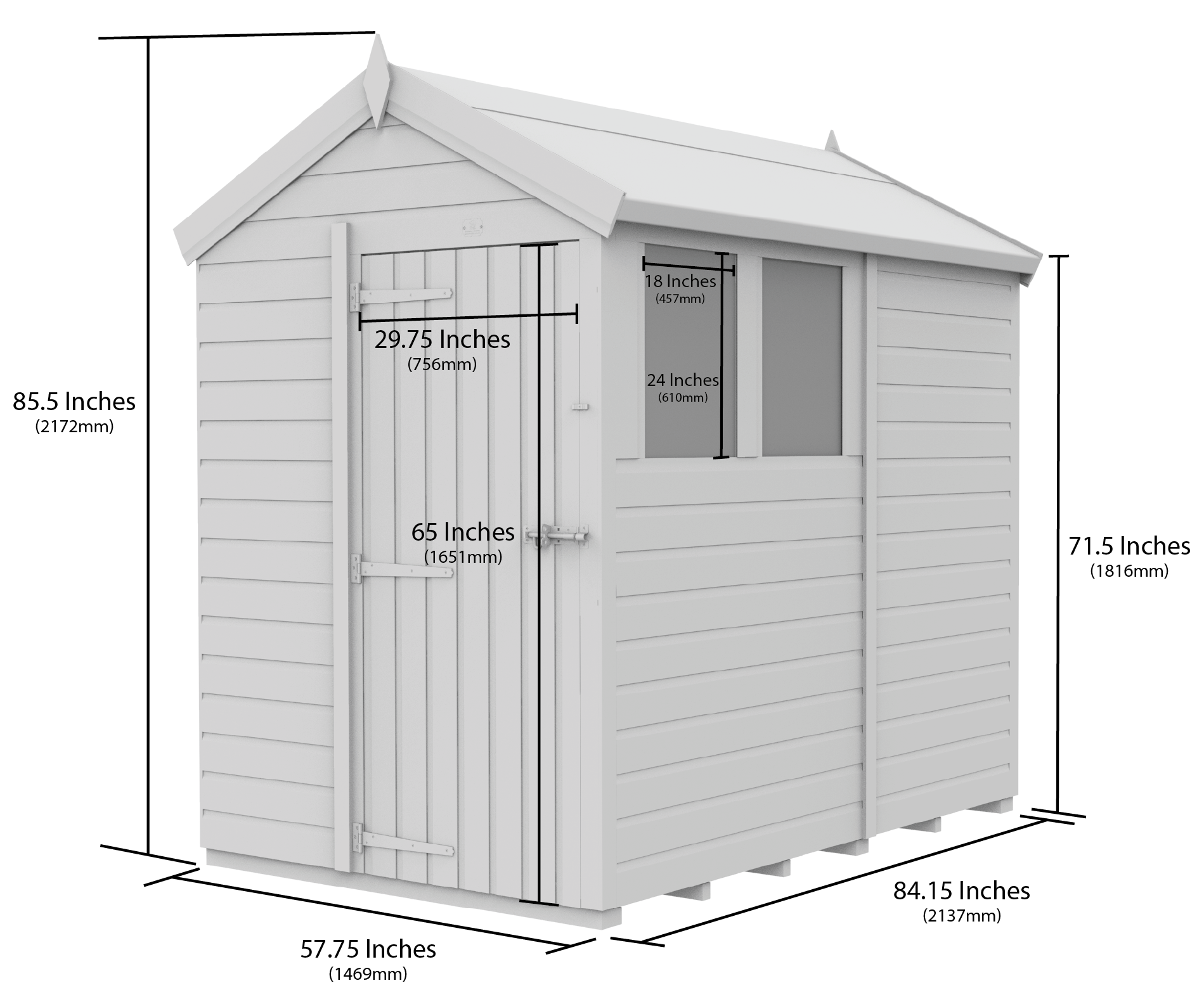

Dimensions
Ordered size
5' × 7'
W × D (feet)
External size
4.81' × 7.01'
W × D (feet)
Important dimension notes+
The external size is what your base must fit — not the ordered size.
- External dimensions run a little under the ordered size because the buildings are palletised in fixed panel widths.
- Typical manufacturing tolerance is ±5mm (±0.2").
- Natural timber movement can shift the final size slightly.
Build it yourself
Designed for DIY assembly, with its own step-by-step guide — printed in the box, and free to read right now before you buy.
See it for real
The Apex Shed
Apex shed — how it goes together
Glee 2026 — our stand at Birmingham NEC
Buildings are dressed for show — the furniture, lighting, plants and props you can see are not included. You get the building and the options you choose.
Look round the whole standPrefer it your way?
Doors and windows exactly where you want them — the Build Studio prices any size instantly.
Open the Build Studio
